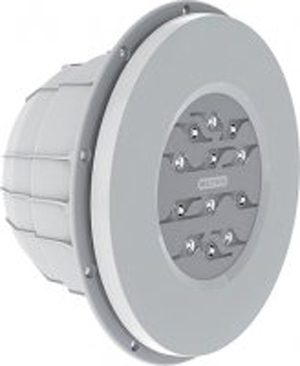

Weltico Diamond Power Design LED projector
Recommended retail price 2024 starting from :
275 €
Our Price starting from :
275 € Including VAT
Ref. Abatik 016010
Ref. Provider 65030LB15
DIAMOND POWER DESIGN 6 LED white projector for concrete or liner
Ref. Provider 65030LB15
DIAMOND POWER DESIGN 6 LED white projector for concrete or liner
Pool projector 6 or 12 LED with alcove
Easy installation and disassembly of bulb
Powerful beam
Low energy consumption
White light
Made in France
Easy installation and disassembly of bulb
Powerful beam
Low energy consumption
White light
Made in France
In stock
DIAMOND POWER DESIGN 6 LED white projector for concrete or liner
Ref. Abatik 016010 Ref. Provider 65030LB15
Ref. Abatik 016010 Ref. Provider 65030LB15
275 €
DIAMOND POWER DESIGN 6 LED white projector for sheeted pools
Ref. Abatik 016012 Ref. Provider 65032LB15
Ref. Abatik 016012 Ref. Provider 65032LB15
292 €
DIAMOND POWER DESIGN 12 LED white projector for concrete or liner
Ref. Abatik 016013 Ref. Provider 65030LB30
Ref. Abatik 016013 Ref. Provider 65030LB30
304 €
DIAMOND POWER DESIGN12 LED white projector for sheeted pools
Ref. Abatik 016015 Ref. Provider 65032LB30
Ref. Abatik 016015 Ref. Provider 65032LB30
322 €
Remote control + on/off box pack for WELTICO Diamond Power LED bulb
Ref. Abatik 017796 Ref. Provider 63254DI
Ref. Abatik 017796 Ref. Provider 63254DI
80 €
The Weltico Diamond and Rainbow Power LED pool projectors offer a quality light that guarantees a reduced energy consumption in comparison to a filament lamp.
LED technology gives a longer lifespan and a heating factor less significant than a traditional light bulb.
The projectors are delivered with a specific alcove chosen depending on the pool finish (concrete walls + liner or panels).
- LED lamp in versions 6 or 12 LED.
- Compact alcove (135mm).
- Assembly and disassembly of the bulb in its alcove without the use of tools.
- Available colour for outer casing: white
LED technology gives a longer lifespan and a heating factor less significant than a traditional light bulb.
The projectors are delivered with a specific alcove chosen depending on the pool finish (concrete walls + liner or panels).
Main advantages
- LED lamp in versions 6 or 12 LED.
- Compact alcove (135mm).
- Assembly and disassembly of the bulb in its alcove without the use of tools.
- Available colour for outer casing: white
Energy consumption
• Excellent lighting quality offering up to 80%. in energy savings.
• Lifespan 50 to 100 times greater than a classic filament bulb.
Technical details
Optimisation of lighting quality
Each LED features a polycarbonate optic, optimising the quality and homogeneity of the optic. The light is softer, with better distribution, reducing shaded zones.
Sealing
The LED and its optic are sealed in a perfectly watertight resin.
Control your projectors from a distance (on option)
The projectors Diamond Power Design can be controlled at a distance by the Weltico universal remote control and transmitter (on option).
The remote control allows you to switch on or switch off the projectors from a distance (up to a range of 50 m).
Using carrier-current technology, the Weltico remote control creates no interference with other electrical equipment in the pool area.
Electrical connections
The transformer
The transformer on which the LED is connected must have a secondary distribution voltage of 12v.
The power supply should be adequate to the requirements of the projectors to be connected. The supply should be 10% greater than the power consumed by the projector.
The below table indicates the number of projectors that a transformer, depending on its capacity.
| Capacity of transformer | Maximum number of projectors 6 LED | Maximum number of projectors 12 LED |
| 50VA | 1 | - |
| 100VA | 3 | 1 |
| 300VA | 10 | 5 |
Cable sections
Remember weak currents, short cables, poor connections, oxidised wiring and poorly tightened lugs can be the cause of voltage drops.
Measure the power supply at the end of the cable section (minimum required power supply: 10,5V / maximum power supply: 13,5V).
Please refer to the below table to define the required cable section depending on the length and available power supply (table refers to the connection of one projector).
Diamond Power Design 6 LED
Cable section
Maximum length
2 x 2,5mm2
13m
2 x 4mm2
21m
2 x 6mm2
31m
2 x 10mm2
52m
Diamond Power Design 12 LED
Cable section
Maximum length
2 x 2,5mm2
8m
2 x 4mm2
12m
2 x 6mm2
19m
2 x 10mm2
32m
Techncial characteristics (LINER-CONCRETE and PANEL version )
| Projector | Diamond Power Design 6 LED | Diamond Power Design 12 LED |
| Power supply | 12V AC 50Hz/60Hz | 12V AC 50Hz/60Hz |
| Power consumed | 16W | 30W |
| Maximum lumens | 1100lm | 2050lm |
| Number of LED's | 6 | 12 |
| Colour | White | White |
| Index of protection | IP68 | IP68 |
| Origin | France | France |
Technical features of the Weltico universal remote control
Carrying range
50 m
Electrical supply
CR20323V
Frequency
433.92 MHz
Power supply
230V, 50 HZ
Maximum charge
1000W /5A
Weltico universal remote control
Dimensions
| Ref | Diamond Design Concrete/liner | Diamond Design panel |
| A | Ø 265 mm | Ø265 mm |
| B | 265 mm | 265 mm |
| C | 265 mm | 265 mm |
| D | 135 mm | 135 mm |
| E | 16 mm | 16 mm |
| F | Ø 232 mm | Ø 262 mm |
| G | Ø 211 | Ø 248.5 mm |
| H | Ø 6mm | Ø6 mm |
| I | 36° | 36° |
Contents of package
- 1 LED lamp
- 1 alcove
- 2 ABS DESIGN finishing rings : 1 round, 1 square
- 1 connector with cable gland
- O-rings with flange
- 1 packet of screws
- 1 cable passage composed of : 2.5m of electrical cable (2x1.5mm²) and duct et ensure connection to box (connection box is not included)
- 1 instruction sheet
Warranty
2 years
