SILHOUETTE QUARTZ
Recommended retail price 2024 starting from :
9400 €
Our Price starting from :
9100 € Including VAT
Ref. Abatik 022324
Ref. Provider 418.00.2220.0
SILHOUETTE QUARTZ pool enclosure XL 471x860x130 H anthracite finish
Ref. Provider 418.00.2220.0
SILHOUETTE QUARTZ pool enclosure XL 471x860x130 H anthracite finish
Telescopic enclosure, self-assembly kit,
Robust aluminium structure,
Multi-walled transparent polycarbonate wall surround,
Robust aluminium structure,
Multi-walled transparent polycarbonate wall surround,
- Complies with standard NF P 90-309
In stock
SILHOUETTE QUARTZ pool enclosure M 361x646x100 H aluminium finish
Ref. Abatik 022321 Ref. Provider 418.00.2112.0
Ref. Abatik 022321 Ref. Provider 418.00.2112.0
6490 €
SILHOUETTE QUARTZ pool enclosure M 361x646x100 H anthracite finish
Ref. Abatik 022322 Ref. Provider 418.00.2120.0
Ref. Abatik 022322 Ref. Provider 418.00.2120.0
6290 €
SILHOUETTE QUARTZ pool enclosure XL 471x860x130 H aluminium finish
Ref. Abatik 022323 Ref. Provider 418.00.2211.0
Ref. Abatik 022323 Ref. Provider 418.00.2211.0
9300 €
SILHOUETTE QUARTZ pool enclosure XL 471x860x130 H anthracite finish
Ref. Abatik 022324 Ref. Provider 418.00.2220.0
Ref. Abatik 022324 Ref. Provider 418.00.2220.0
9100 €
SILHOUETTE QUARTZ XXL 571x1073x155 H aluminium finish
Ref. Abatik 022325 Ref. Provider 418.00.2311.0
Ref. Abatik 022325 Ref. Provider 418.00.2311.0
12790 €
SILHOUETTE QUARTZ pool enclosure XXL 571x1073x155 H anthracite finish
Ref. Abatik 022326 Ref. Provider 418.00.2320.0
Ref. Abatik 022326 Ref. Provider 418.00.2320.0
12780 €
Part of the new Abrissime® enclosure range, the Silhouette Quartz pool enclosure is the perfect complement to your poolside environment, lengthening your swimming season , conserving water temperature.
This pool enclosure is an excellent way to ensure your children's and pet's security around the pool, avoiding the risk of falls and drowning.
By using a pool enclosure you equally facilitate the maintenance of your pool by limiting debris, dust and dirt in your pool water.
The Silhouette Quartz adapts to all pool shapes. The design of its robust, aluminium structure guarantees an excellent resistance to weather conditions.
Its modular conception allows the structure to be totally closed or partially opened by pushing back the modules.
The modules fit one into the other, sliding on their rails. This system allows you to easily uncover your pool water.
The Silhouette Quartz is delivered as a self-assembly kit. The structure is protected in a wooden casing, optimising protection during transport.
Following reception, you can immediately begin installation as all hardware required is supplied in your kit. A clear, precise installation manual details each step to follow up to the moment when you place your enclosure on its rails.
The enclosures in the Abrissime range benefit from all the technical innovation in terms of construction quality. Many quality controls are effectuated throughout the manufacturing process. The Silhouette Quartz uses the most qualitative manufacturing materials, proved by its 4mm transparent polycarbonate coupled with its aluminium structure.
The structure of the Silhouette Quartz enclosure is available in two finishes: aluminium or Anthracite.
Aluminium finish
Anthracite finish
Each module is equipped with latches on the rail guide, the last module is equipped with a key lock. This mechanism allows you to block the module on the rail.
You can close the totality of your enclosure so pool access is impossible.
The largest model of this enclosure features a removable front panel. Using tightening screws, you can easily remove or put back the front panel.
The enclosure features a lateral sliding door on the largest model. You can choose, when assembling the kit, which side you wish to position the door on.
The lateral door includes a key lock, that requires a 2-handed action, conforming to the norm NF P90-309.
The Silhouette Quartz is delivered in kit form, 3 persons are needed to reception and unload all elements. All delivered merchandise should be controlled with the transporter on reception.
This pool enclosure is an excellent way to ensure your children's and pet's security around the pool, avoiding the risk of falls and drowning.
By using a pool enclosure you equally facilitate the maintenance of your pool by limiting debris, dust and dirt in your pool water.
The Silhouette Quartz adapts to all pool shapes. The design of its robust, aluminium structure guarantees an excellent resistance to weather conditions.
Its modular conception allows the structure to be totally closed or partially opened by pushing back the modules.
The modules fit one into the other, sliding on their rails. This system allows you to easily uncover your pool water.
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
Advantages
Lengthens your swimming season
Silhouette Quartz pool enclosure lengthens your swimming season. Creating a "greenhouse" effect, the enclosure gives a gain of temperature to your pool water. The modules conception coupled with the sealing brush system creates a good insulation, limiting heat loss during the night.
Silhouette Quartz pool enclosure lengthens your swimming season. Creating a "greenhouse" effect, the enclosure gives a gain of temperature to your pool water. The modules conception coupled with the sealing brush system creates a good insulation, limiting heat loss during the night.
Security
All of the modules are secured and the lateral door can be locked by key, guaranteeing the security of children and animals during your absence. The smallest module features a latch locking system actioned from inside the enclosure. This ensures that no one can be accidentally locked inside the pool enclosure. Your pool is totally secure, and conforms to applicable legislation
All of the modules are secured and the lateral door can be locked by key, guaranteeing the security of children and animals during your absence. The smallest module features a latch locking system actioned from inside the enclosure. This ensures that no one can be accidentally locked inside the pool enclosure. Your pool is totally secure, and conforms to applicable legislation
Valorises your pool
Silhouette Quartz transforms your pool into an outdoor living area where you can enjoy aquatic activities with family or friends. Silhouette Quartz creates a welcoming, comfortable, supplementary living space that valorises your pool area.
Silhouette Quartz transforms your pool into an outdoor living area where you can enjoy aquatic activities with family or friends. Silhouette Quartz creates a welcoming, comfortable, supplementary living space that valorises your pool area.
Easy maintainance
This shelter protects your pool from dirt, dust and debris, such as leaves, pollen and pollution. Your pool water is easy to maintain and will require less water treatment chemicals. This enclosure equally limits the water evaporation and pH variations due to rainwater.
This shelter protects your pool from dirt, dust and debris, such as leaves, pollen and pollution. Your pool water is easy to maintain and will require less water treatment chemicals. This enclosure equally limits the water evaporation and pH variations due to rainwater.
Lengthening your swimming season
Silhouette Quartz lengthens your swimming season for a further 2 to 3 months.
The graph to the right shows a gain in temperature of 3 to 7°C during the summer season.
The black curve corresponds to the temperature of water in the pool without the use of a shelter. The red curve corresponds to the pool water temperature with the use of a shelter.
The graph to the right shows a gain in temperature of 3 to 7°C during the summer season.
The black curve corresponds to the temperature of water in the pool without the use of a shelter. The red curve corresponds to the pool water temperature with the use of a shelter.
Different available models
| Model | Outer width | Outer length | Outer height |
| Silhouette Quartz M | 3,61m | 6,46m | 1,00m |
| Silhouette Quartz XL | 4,71m | 8,60m | 1,30m |
| Silhouette Quartz XXL | 5,71m | 10,73m | 1,55m |
Quick and easy installation
The Silhouette Quartz is delivered as a self-assembly kit. The structure is protected in a wooden casing, optimising protection during transport.
Following reception, you can immediately begin installation as all hardware required is supplied in your kit. A clear, precise installation manual details each step to follow up to the moment when you place your enclosure on its rails.
Number of modules depending on the length of your pool
The number of modules depends on the total length of your enclosure.
An enclosure measuring 6,46m in length is composed of 3 modules.
An enclosure measuring 8,60m is composed of 4 modules.
Each enclosure is placed on two rails. The width of the rails depends on the number of modules that compose the enclosure.
An enclosure measuring 6,46m in length is composed of 3 modules.
An enclosure measuring 8,60m is composed of 4 modules.
Each enclosure is placed on two rails. The width of the rails depends on the number of modules that compose the enclosure.
| Total inside length of the shelter | Number of modules | Width of each rail |
| 6,38m | 3 | 21,3 cm |
| 8,52m | 4 | 28,3 cm |
| 10,65m | 5 | 35,3 cm |
The structure
The enclosures in the Abrissime range benefit from all the technical innovation in terms of construction quality. Many quality controls are effectuated throughout the manufacturing process. The Silhouette Quartz uses the most qualitative manufacturing materials, proved by its 4mm transparent polycarbonate coupled with its aluminium structure.
The structure of the Silhouette Quartz enclosure is available in two finishes: aluminium or Anthracite.
Aluminium finishAnthracite finishSecurity
Each module is equipped with latches on the rail guide, the last module is equipped with a key lock. This mechanism allows you to block the module on the rail.
You can close the totality of your enclosure so pool access is impossible.
Enclosures openings
The largest model of this enclosure features a removable front panel. Using tightening screws, you can easily remove or put back the front panel.
The enclosure features a lateral sliding door on the largest model. You can choose, when assembling the kit, which side you wish to position the door on.
The lateral door includes a key lock, that requires a 2-handed action, conforming to the norm NF P90-309.
The pool enclosures rail
The Silhouette Quartz has a guiding system that uses rails. This system features a protection against dirt and guarantees the smooth passage of each module.
The rails mean you can "fold" your modules on one side of the pool or the other, as you wish.
Each module is independent, so you can open or close your enclosure any way you want.
Each module is independent, so you can open or close your enclosure any way you want.
Technical features
Structure and rails
Aluminium
Structure sections
40,5 x 55mm
Surface treatment
Elox
Structure finish
Aluminium or Anthracite
Wall panels
Translucent polycarbonate, 4 mm with anti UV treatment
Colour of polycarbonate
Colourless
Wheels
Polyamide with bearings
Front panel
Removable
Sliding door
Lateral on large model, equipped with key lock
Dimensions of enclosures

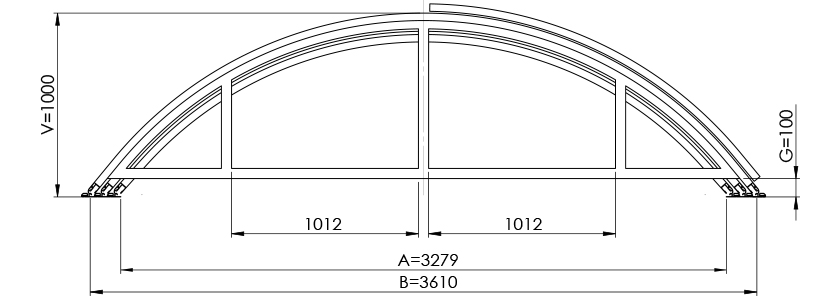

Silhouette Quartz Medium
G = Outer height (mm)
V = Distance from ground level to enclosure summit (mm)
A = Inner width (mm)
B = Outer width (mm)
C = Inner length (mm)
E = Outer length (mm)
Silhouette Quartz XL
G = Outer height (mm)
V = Distance from ground level to enclosure summit (mm)
A = Inner width (mm)
B = Outer width (mm)
C = Inner length (mm)
E = Outer length (mm)
Silhouette Quartz XXL
G = Outer height (mm)
V = Distance from ground level to enclosure summit (mm)
A = Inner width (mm)
B = Outer width (mm)
C = Inner length (mm)
E = Outer length (mm)
Packaging and transport
The Silhouette Quartz is delivered in kit form, 3 persons are needed to reception and unload all elements. All delivered merchandise should be controlled with the transporter on reception.
| Model | Packing dimensions | Weight |
| Silhouette Quartz M | 430 x 41 x 157cm | 380kg |
| Silhouette Quartz XL | 543 x 45 x 188cm | 600kg |
| Silhouette Quartz XXL | 606 x 61 x 175cm | 860kg |
Warranty
3 YEARS
