Harvia Senator Combi electric stove
Recommended retail price 2024 starting from :
1676 €
Our Price starting from :
1544 € Including VAT
Ref. Abatik 014339
Ref. Provider T7C
HARVIA SENATOR COMBI T7C electric sauna stove
Ref. Provider T7C
HARVIA SENATOR COMBI T7C electric sauna stove
Discover the Harvia Senator Combi electric sauna stove for saunas between 6 and 14m³
Featuring evaporator to provide humid (45-65°) or dry (70-90°) heat,
Compact, stainless steel structure
Featuring evaporator to provide humid (45-65°) or dry (70-90°) heat,
Compact, stainless steel structure
In stock
HARVIA SENATOR COMBI T7C electric sauna stove
Ref. Abatik 014339 Ref. Provider T7C
Ref. Abatik 014339 Ref. Provider T7C
1544 €
HARVIA SENATOR COMBI T9C electric sauna stove
Ref. Abatik 006928 Ref. Provider HSC900400
Ref. Abatik 006928 Ref. Provider HSC900400
1600 €
HARVIA SENATOR COMBI T7CA electric sauna stove
Ref. Abatik 014341 Ref. Provider T7CA
Ref. Abatik 014341 Ref. Provider T7CA
1949 €
HARVIA SENATOR COMBI T9CA electric sauna stove
Ref. Abatik 014342 Ref. Provider T9CA
Ref. Abatik 014342 Ref. Provider T9CA
2009 €
Harvia Senator Combi electric sauna stove in detail
The Harvia Senator Combi is a powerful and resistant stove adapted to intensive use.
Half-way between a sauna and hammam, this stove offers several types of sauna session.
Its compact dimensions (L345 x D465mm) allow you to optimise your relaxation area.
Perfectly adapted for use in:
- Gyms
- Well being centres
- Hotels
- Holiday complexes
There are four available models:
- T7C and T7CA with a capacity of 7kw
- T9C and T9CA with a capacity of 9kw
The Senator Combi is an electric stove combined with an evaporator. Several methods of use are possible:
Half-way between a sauna and hammam, this stove offers several types of sauna session.
Its compact dimensions (L345 x D465mm) allow you to optimise your relaxation area.
Use
Perfectly adapted for use in:
- Gyms
- Well being centres
- Hotels
- Holiday complexes
Models
There are four available models:
- T7C and T7CA with a capacity of 7kw
- T9C and T9CA with a capacity of 9kw
Multi-fonctional
The Senator Combi is an electric stove combined with an evaporator. Several methods of use are possible:
- Steam sauna (humid heat with a lower temperature): temperature ranging from 45 to 65°C with a humidity rate of 40 and 65%.
Control panel
The Senator Combi is managed by a control panel
The T7CA and T9CA models feature automatic reservoir fill system.
Features
| Model | T7C/T7CA | T9C/T9CA |
| Capacity | 7kw | 9kw |
| Minimum sauna volume | 6m³ | 8m³ |
| Maximum sauna volume | 9m³ | 14m³ |
| Width | 345mm | 345mm |
| Height | 660mm | 660mm |
| Depth | 465mm | 465mm |
| Weight | 20kg | 20kg |
| Maximum capacity stone compartment | 35kg | 35kg |
| Control unit | Classic C105S or Griffin CG170C | Classic C105S or Griffin CG170C |
| Reservoir fill | Manual/Automatic | Manual/Automatic |
Installation
This stove should be installed on floor level.
For the T7CA and T9CA anticipate a water inlet with stop valve for automatic reservoir fill system.

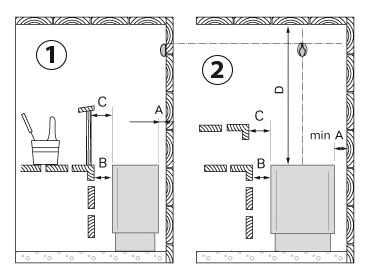

Security distances
| Model | T7C/T7CA | T9C/T9CA |
| Security distance A in relation to wall section | 80mm | 120mm |
| Security distance B in relation to lower bench | 35mm | 50mm |
| Security distance C in relation to upper bench | 60mm | 80mm |
| Security distance D in relation to ceiling | 1250mm | 1250mm |
Profile view (1), frontal view (2).
Electrical connection
Senator Combi stove requires three-phase power supply.
| Model | T7C | T9C | T7CA | T9CA |
| Supply voltage | 400V 3N | 400V 3 N | 400V 3 N | 400V 3 N |
| Cable section for control unit | 5 x 2,5mm² | 5 x 2,5mm² | 5 x 2,5mm² | 5 x 2,5mm² |
| Cable section for connection box | 5 x 2,5mm² | 5 x 2,5mm² | 7 x 2,5mm² | 7 x 2,5mm² |
| Cable section for stove connection | 5 x 2,5mm² | 5 x 2,5mm² | 7 x 2,5mm² | 7 x 2,5mm² |
| Cable section for sensor | 4 x 0,25mm² | 4 x 0,25mm² | 4 x 0,25mm² | 4 x 0,25mm² |
| Fuses | 3 x 16A | 3 x 16A | 3 x 16A | 3 x 16A |
The kit includes :
- 1 Harvia Senator Combi stove
- 1 sensor to control and adjust sauna temperature
- Classic C105S or Griffin CG170C control unit
Harvia Classic distance control unit for Sauna or Harvia Griffin distance control unit
These units offer :
sauna preheat (up to 12h prior to use)
Temperature control (+40°C to +110°C)
Program the duration of the sauna (1 to 12h)
Control the humidity rate (20 to 95%)
Manage lighting and ventilation
- Volcanic sauna stoves available on option, 35 kg are required for stove operation
- 1 sensor to control and adjust sauna temperature
Available options :
- Classic C105S or Griffin CG170C control unit
Harvia Classic distance control unit for Sauna or Harvia Griffin distance control unit
These units offer :
sauna preheat (up to 12h prior to use)
Temperature control (+40°C to +110°C)
Program the duration of the sauna (1 to 12h)
Control the humidity rate (20 to 95%)
Manage lighting and ventilation
- Volcanic sauna stoves available on option, 35 kg are required for stove operation
Warranty
2 years
